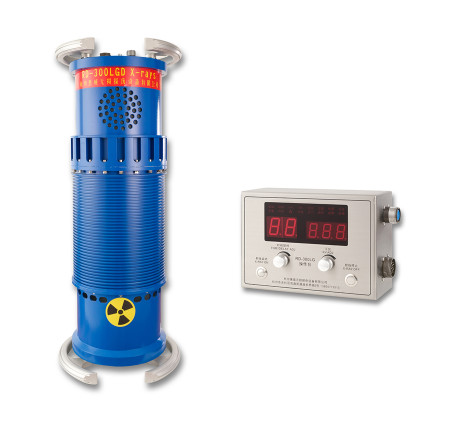

Industrial NDT X-ray Radiographic System NDT Inspection Industrial X-ray Machines RD-360LGD
Main introduction:
echnical background
With the continuous expansion of the depth and breadth of industrial manufacturing in China, there are many industrial products with large wall thickness and focal length that urgently need radiographic testing for butt
welds. Traditional X-ray machines can no longer meet the needs of such radiographic testing. RD-360LG is developed in the context of promoting the implementation of China's 2025 Manufacturing Power Strategy Action
Plan.
Huiwei has consistently upheld the core principle of crafting globally competitive products. Through relentless R&D efforts, the RD - 360LG industrial X - ray machine—engineered for durability and high - energy performance—has been successfully launched. Rooted in the company’s three decades of technical expertise, this product represents a breakthrough: a 360KV X - ray machine capable of continuous operation and exposure, with a maximum penetration depth of 80mm for Q235 steel. As Huiwei’s premium high - energy flagship model, it addresses the critical challenges of thick - walled structures and long focal lengths in non - destructive testing (NDT) for special equipment in China, offering an optimized solution. By replacing certain application scenarios of Y192 radiation sources, it eliminates issues related to radiation source mobility and management, delivering tangible benefits to NDT institutions: reduced costs, enhanced efficiency, and strengthened risk control throughout the testing process. Huiwei is confident that the RD - 360LG will carve out a significant position in the global NDT landscape.
Main usage:
The HUIWEI Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.
RD-360LG Technical Parameter
| model | RD-360LGD | RD-360LGP |
| Outgoing wiring harness | directional radiation | Circumferential radiation |
| Input power supply | AC22V±10% |
| Maximum transmittance (mm) steel | 80mm(steel) | 70mm(steel) |
| High voltage range (kV) | 200-360 | 200-360 |
| Tube current (mA) | 5 | 5 |
| Focus size (mm) | 3.0x3.0 | 1.0x3.0 |
| Shooting angle | 45±5° | 360° |
| Generator size | Φ350x770 | Φ350x770 |
| Generator weight (Kg) | 42 | 40 |
| operation mode | 3:1Continuous exposure rest |
